Universal Ground Screw Pile For Solar Mounting Project
  • MG Solar
  • China
  • Within 7 days
  • 20,000 pcs/Day
  • 1PC
  • US $ 12.9~US $ 13.5

Fast and easy to install

Universal Ground Screw Pile For Solar Mounting Project

Universal Screw Pile


Product Description

Technical Parameters

Material: Hot-galvanized Steel Q235

High Class Hot-galvanized 80u~120u


Details

Ground Screw

Screw Pile



Item No.DiameterThicknessLength
MG-GS-F76-T3.0-L160076mm
3mm
1600 mm
MG-GS-F76-T3.0-L18001800 mm
MG-GS-F76-T3.0-L20002000 mm
MG-GS-F76-T3.0-L22002200 mm
MG-GS-F76-T3.0-L25002500 mm
MG-GS-F76-T3.0-L30003000 mm

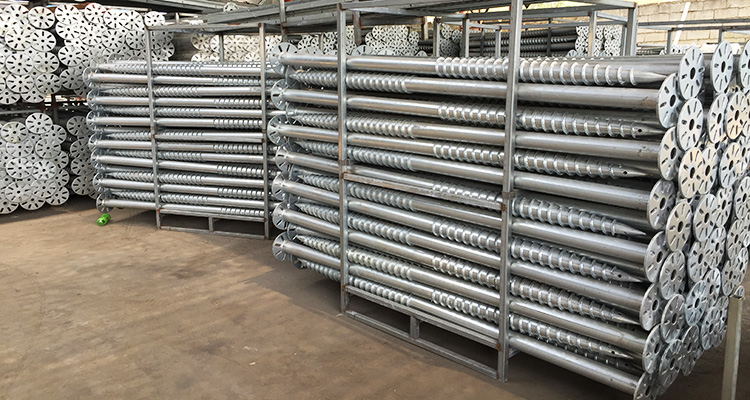

Packaging & Delivery

Universal Screw Pile

  • Packaging Details: Iron Pallet;

  • Port: Xiamen Port, China

  • Delivery Time: 5-10 working days after received your payment


Ground Screw Machine

Ground Screw


Production Process

Screw Pile


SGS Test Report

Universal Screw PileGround ScrewScrew Pile


Project Reference

Universal Screw Pile


FAQ

Q: What’s the material of the ground screw pile?

MG SOLAR:Hot-Dipped Galvanized Steel Q235(HDG Q235B)


Q: What’s the thickness of the galvanized coating?

MG SOLAR:80μm~120μm. Determined by the material thickness



Q: What’s the diameter of the screw pile?

MG SOLAR:76mm, 89mm, 114mm are available for options. 76mm is the common use.



Q: What’s the thickness of screw pile material?

MG SOLAR:2.5mm~4mm, 3mm is the common use.



Q: What is the total length range of adjustable screw piles?

MG SOLAR:1600mm~1900mm



Q: How to choose the screw pile?

MG SOLAR:Based on soil condition and project load to choose correct thickness and diameter of screw pile.



Q: What is the length of screw pile you can offer?

MG SOLAR:Common use is 1600mm,1800mm,2000mm,we can offer between 1000mm to 3000mm.



Q: What kind of systems can screw pile be used for?

MG SOLAR:It can be used for ground mount systems, solar farm structure systems and carport structure systems.


Please feel free to contact us, if there is anything we can do for you !
