Exceptional Corrosion Resistance: Ideal for harsh rooftop environments.
FRP Walkway
Product Description
Walkway is fairly useful for a photovoltaic system, which not only makes mounting and maintenance easier, but also protect roofs during walking.
Our walkway can be compatible with all our products: Rail,L-feet, clamp etc. To be more versatile, we offer multiple choice of length, width and coating thickness.
Technical Information
| Product Name | FRP Walkway |
| Size | Customized |
| Advantage | Simple and fast installation |
| Material | Fiberglass Reinforced Plastic (FRP) |
| Warranty | 12 years |
Features & Benefits
- Aging-Resistant, Insulation, Corrosion Resistance & Easy installation
- Slight elasticity, reduce the fatigue of personnel, enhance comfort and improve work efficiency.
- Protect roof from deformation, long lifetime.
Detail Show
Project Reference
FAQ
Q: What materials are the PV walkway made of?
MG SOLAR:We provide two materials of PV walkway with customers: ZAM galvanized steel and Fiberglass Reinforced Plastic (FRP).
Q: What are the recommended sizes of FRP Walkway?
MG SOLAR:
L3360mm*W370mm*H25mm / L3660mm*W370mm*H30mm;
L3360mm*W410mm*H25mm / L3660mm*W410mm*H30mm;
Q: What are the recommended sizes of ZAM Walkway?
MG SOLAR:L2000mm*W350*H35/ L2500mm*W350*H35 / L3000mm*W350*H35
Q: What is the PV Walkway used for?
MG SOLAR:PV Walkway are widely used on rooftop for solar panel system maintenance. It is a good solution for solar system
to avoid any risk during solar system maintain in future.
Q: What is the Fixing Method of PV Walkway?

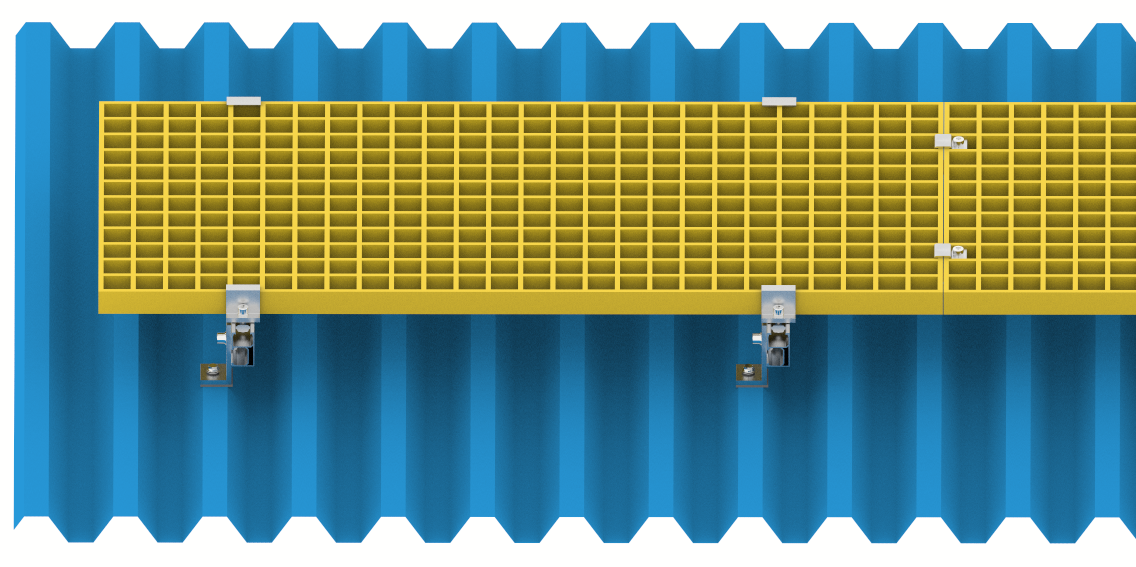

MG SOLAR:It is fixed on the rail with end clamp and hexagonal Bolts. Generally it is installed on metal roofs, so it can be used
with our L feet series, roof clamp series, etc.
Q: What should I do if the length of the aisle does not meet my needs?
MG SOLAR:Don’t worry, both walkways can be cut to length according to your needs.
Q: What colors are available?
MG SOLAR:FRP walkways are available in yellow, green and gray for your choice.
Q: What is the lifespan of this FRP walkway?
MG SOLAR:It is designed for 20+ years of outdoor use with excellent UV resistance.
Q: Can the size be customized?
MG SOLAR:Yes, we offer customizable lengths and widths to fit various solar mounting structures.
Q: Is it anti-slip?
MG SOLAR:Yes, the surface is specially treated for high traction even in wet conditions.
